Rectangular dampers TRS

TRS

TECHNICAL DATA SHEET REGISTER TECHNICAL DATA SHEET REGISTER VERSION KIT [litebox id="boutonVoirVideo" href="#modalVideo" anch="PRESENTATION DU REGISTRE VERSION KIT" ]

Advantages

Certified British Standard 476-20
High temperature 400°C / 2h
Large sizes 2 500 x 2 500 mm
Mechanical resistance 10 000 Pa

Dimensions

Min 400 x 250 mm
Max 2500 x 2500 mm
Blades' height 250 mm
Frame's width 280 mm

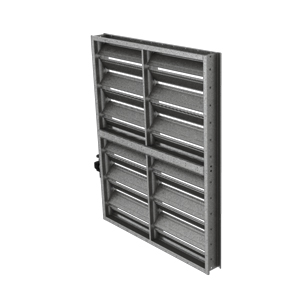

Registre Tunnels Routiers TRS - Road and Metro Tunnels Damper

Features

TRS damper is designed to comply with the safety requirements in road and metro tunnels regarding temperature and pressure resistance. This smoke damper is suitable for smoke exhaust or shutoff purposes in tunnels.

Construction:

  • Frame and blade: galvanized or stainless steel
  • Leakage in zinc-coated steel: opposed blade operation
  • Available with manual or motorized control (actuators can be provided in option)

Performances:

  • Acceptable pressure: 6 000 Pa (operating) et 10 000 Pa (accidental)
  • Operating temperature: British Standard 476-20, 400°C/2h
  • Upstream/downstream airtightness: class 3 according to EN 1751

In option:

  • Fireproof enclosure provided with actuators

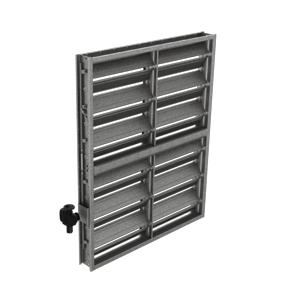

Registre Tunnels Routiers TRS - Road and Metro Tunnels Damper
