Fittings ELYGAINE

ELYGAINE

TECHNICAL DATA SHEET REGISTER

TECHNICAL DATA SHEET REGISTER VERSION KIT [litebox id="boutonVoirVideo" href="#modalVideo" anch="PRESENTATION DU REGISTRE VERSION KIT" ]

Advantages

Wide range	Connection and transformation
Dimensions	Custom-made
Connection	Downstream connection zipper system
Installation	Easy and fit to install

Dimensions

Dimensions	Custom-made
Standard height	500mm
Frame's width	30 mm

Characteristics

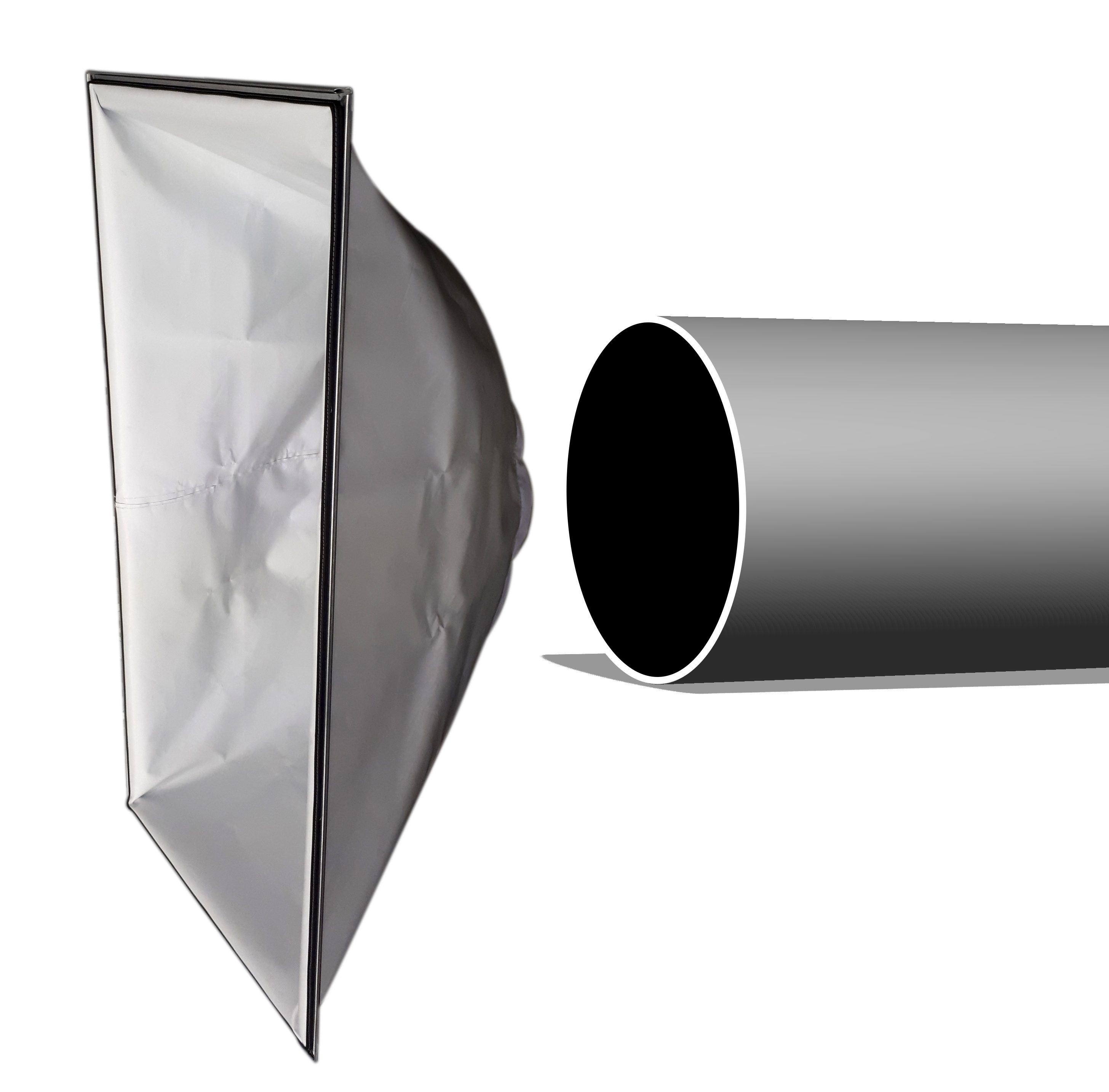

The ELYGAINE sleeve is a customized sleeve designed to connect ductables to a textile diffusion duct. Connection is made on a rectangular basis upstream of the ductable and the transformation is adapted to fit the duct section and the off-centring to be done if necessary. Very simple connection thanks to the zipper system.

The sleeve replaces the sheet metal tranformation piece and offers greater flexibility.

Construction

Sleeve’s body: Airtight fabrics for textile duct (polyester, PVC, glass fiber)
Upstream connection: 90° edge or smooth edge frame ELYFLEX, ELYT+ of fabric type
Downstream connection: zipper
Possible shapes : circular, semi-circular, oblong or low profile semi circular

Performances

According to manufacturing

Technical datasheet of ELYGAINE
