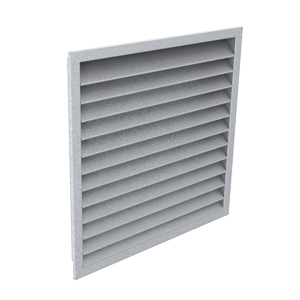

External weather louvres GH

GH

Advantages

Construction Large dimensions
Protection Rain-proof louvre
Mounting Assembling with a filter support (option)

Dimensions

Min 395 x 340 mm
Max Section up to 4m² (Over 4m² : multi-section units available)
Frame's width 95 mm
Blades' pitch 82,5 mm

Characteristics

The GH weather louvre can be used for air intake or air exhaust. It is suitable for external wall mounting and is dedicated to commercial buildings applications.

Construction:

  • Frame and blades : galvanized or stainless steel, raw aluminium
  • Anti-bird mesh: galvanized or stainless steel
  • Blades’ step: 82,5 mm

Recommended air velocity:

  • Air exhaust: up to 5 m/s
  • Air intake: up to 2,5 m/s

Option:

  • Backframe can be provided
  • Assembly with filter support, air control damper
  • Powder coatings to any standard RAL colour on request
