Circular silencers OPTIMUM

OPTIMUM

TECHNICAL DATA SHEET REGISTER TECHNICAL DATA SHEET REGISTER VERSION KIT [litebox id="boutonVoirVideo" href="#modalVideo" anch="PRESENTATION DU REGISTRE VERSION KIT" ]

Advantages

Performances Tested by an external laboratory (EN 7235)
Attenuations Enhanced thanks to a central splitter
V-shaped profiles Optimized pressure loss
Delivery time 1 week exworks (depending on diameter)

Dimensions

Eurovent standard diameters From Ø125 to 500 mm
Thicknesses of insulating material 50 or 100 mm
Lengths 600 – 900 – 1000 mm depending on diameter
Silencieux Circulaires à Baffle -OPTIMUM Circular Duct Silencers

Characteristics

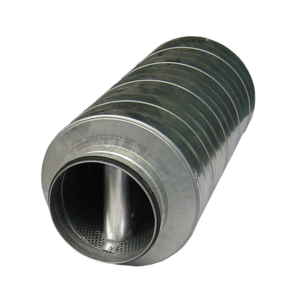

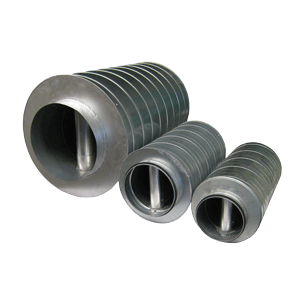

OPTIMUM circular duct silencers enable to reduce the noise generated by the ventilation system.

They are equipped with a central sound-absorbing splitter providing excellent acoustic performances.

Our solutions have been tested and certified by independent laboratory.

Construction:

  • Casing: galvanized or stainless steel, aluminium
  • Sound proofing: rot-proof and water-repellent mineral wool
  • Connection: spigot ends, threaded flanges, revolving flanges (depending on the model)
  • Fire class: Euroclass A1

Silencieux Circulaires à Baffle -OPTIMUM Circular Duct Silencers
