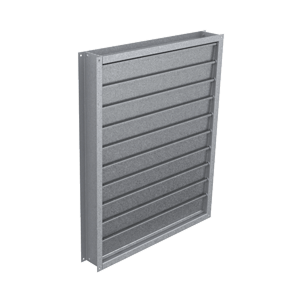

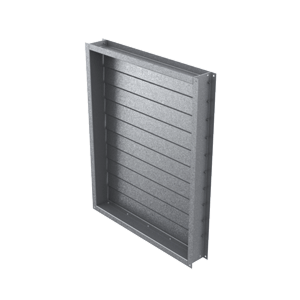

Backdraught dampers AS

AS

Advantages

Dimensions Up to 2000 x 1995 mm
Overpressure Adapted to high overpressure

Dimensions

Min 200 x 180 mm
Max 2000 x 1995 mm
L with a pitch of 100 mm
H with a pitch of 165 mm
Blades' height 82,5 mm
Frame's width 125 mm

Characteristics

Backdraught damper AS is designed for a one-way air flow direction. The blades prevent reverse flow in the ductworks. It is suitable for commercial and industrial HVAC applications.

Construction:

  • Frame: galvanised steel, aluminium, stainless steel 304 or 316L
  • Blades: Aluminium, stainless steel 304L or 316L

Performances:

  • Acceptable pressure: 150 Pa for a length of  L = 1m
  • Operating temperature: -20 to +80°C
  • Air velocity: between 2 and 5 m/s

Option:

  • Painting
